Yahboom G1 smart tank robot kit with WIFI camera for Raspberry Pi 4B/3B+

Regular price $139.00

Shipping calculated at checkout.

Introduction

Yahboom Raspberry Pi Tank Robot uses the latest Raspberry Pi 4B/3B+ development board as the core controller. The vehicle adopts blue aluminum chassis, high-quality track, high-power 370 motor, and metal coupling. When the motor drives the wheel of the car to rotate rapidly, it can achieve the function of climbing up to 60 degrees under the condition of sufficient friction. For this Raspberry Pi tank, real-time video transmission is indispensable.

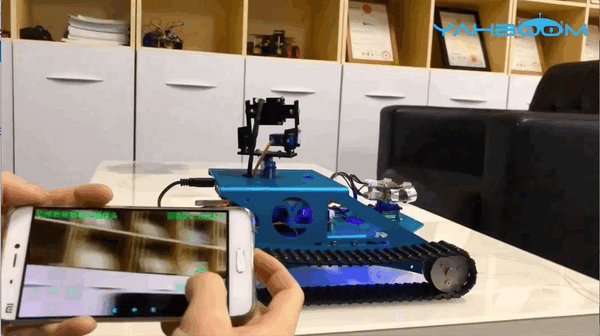

Here we use a camera that can manually adjust the focal length two degrees of freedom, and control the rotation of the camera head through the Android phone Bluetooth app. At the same time, the tank could achieve the transmission of the high-definition video stream through the 5G WIFI network of the Raspberry Pi 4B/3B+. We will also provide some code and corresponding information of some components as a reference. Both expansion board and frame we are providing the corresponding extended interface, users can expand and use it according to the information provided by us, So for the tank, educators, learners, and raspberry lovers will be the most suitable owners.

Yahboom G1 smart tank robot kit with WIFI camera for Raspberry Pi 4B/3B+
Yahboom G1 smart tank robot kit with WIFI camera for Raspberry Pi 4B/3B+
Yahboom G1 smart tank robot kit with WIFI camera for Raspberry Pi 4B/3B+
Yahboom G1 smart tank robot kit with WIFI camera for Raspberry Pi 4B/3B+

Feature

  • Compatible with the latest version of Raspberry Pi 4B/3B+ board
  • The entire vehicle adopts 2mm blue thickened aluminum alloy frame, installation is simple and firm.
  • BST-4WD multi-functional expansion board, it is equipped with some interfaces of various sensors and communication modules, and it is compatible with four core controllers: Arduino UNO, 51 micro controller, STM32, and Raspberry Pi.
  • It supports multiple functions: High angle climbing; Tracking; Ultrasonic obstacle avoidance; Overing the obstacle, etc.
  • Users can use C language programming and Python programming.
  • The car and Camera cloud platform can be controlled by Bluetooth App remote control by Android mobile; HD video real-time transmission can be realized by Raspberry Pi coming with WIFI.
  • The vast amount of data and sample program for reference

Package list

  • 4 channel tracking sensor x1
  • 4WD expansion board x1
  • ultrasonic sensor x 1
  • colorful car light x 1
  • caterpillar track x 2
  • 18650 battery box x1
  • 18650 battery x3
  • Bluetooth 4.0 module x1
  • 12.6v charger x1
  • 370 motor x2
  • servo package x1
  • 6pin flat cable x1
  • 4pin flat cable x2
  • 40pin flat cable x1
  • active wheel package x2
  • drive motor package x2
  • copper pillar & screw & nut package x1
  • separation pillar x2
  • rivet x4
  • plastic gasket x1
  • screw driver x1
  • manual x1
  • HD camera x1
  • SG90 camera servo x2
  • Fixed frame x1
  • USB cable x1
  • 4mm coupling x2
  • jumper cap x5
  • aluminum stereo chassis x1

If you choose G1 tank with Raspberry Pi 3B+/4B, below are included.

  • Raspberry Pi board x1
  • 8G TF card x1
  • heatsink x1

Another version:

Documents
